Matt Black Self Closing Concealed Hinge Pack

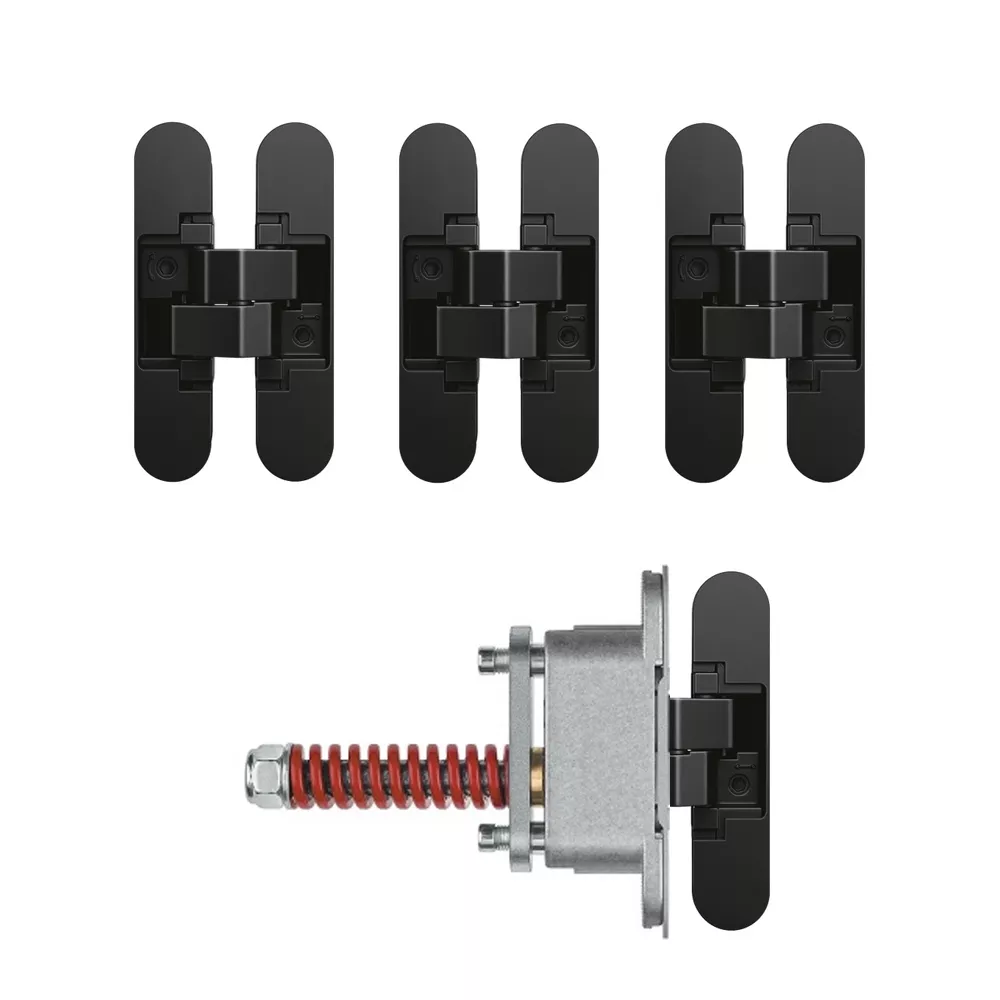

Simonswerk Matt Black (Non Soft Close) Self Closing Concealed Hinge Pack (AN 160 3D + AN 107 3D C60)

Hinge Key Features AN1603D:

• completely concealed hinge system
• for timber and aluminium frames
• for unrebated residential doors
• 3D adjustment (side +/- 1.5 mm, height +/- 2.5 mm, compression +/- 1.0 mm)
• material zamak

Closer Key Features AN1073DC60:

• self closing hinge system
• closing power from 40 kg up to 60 kg
• completely concealed hinge system
• for timber and aluminium frames
• for unrebated residential doors
• adjustable closing power when door is installed
• material zamak / steel

NOT SUITABLE FOR FIRE DOORS

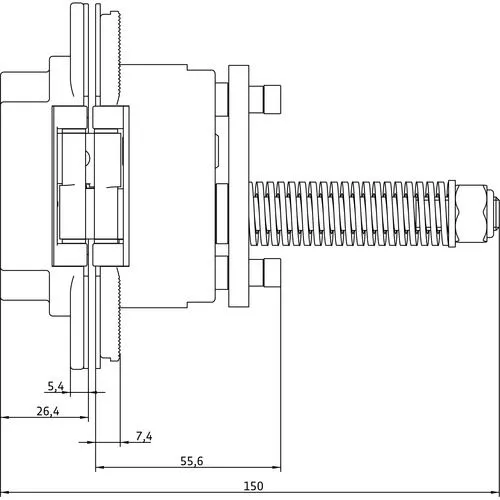

Dimensions:

• Overall length 110.0 mm
• Width (door part) 24.0 mm
• Width (frame part) 24.0 mm
• Cutter diameter 16.0 mm
• Collar ring diameter 27.0 mm
• Opening angle + 180°

For technical information and fitting instructions see below:

Hinge PDF Downloads Click Here

Closer PDF Downloads Click Here
