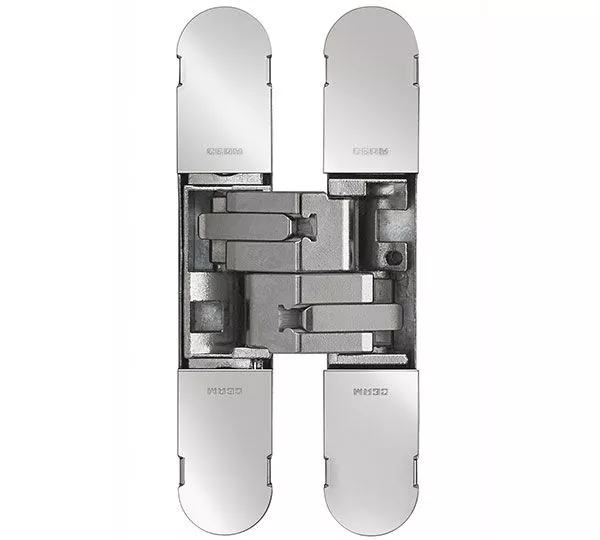

Ceam Polished Nickel 130mm 3D Concealed Hinge 1230 | CI001230NIK00

Ceam Polished Nickel 3D Concealed Hinge 1231

• Concealed heavy duty hinge
• Suitable for unrebated, flush faced quality timber doors
• Removable cover plates to concealed adjustment screws
• 3D Adjustable for fine tuning whilst fitting
• Suitable for FD30/60 fire doors when used with intumescent kit
• 10 year mechanical guarantee
• Ceam range from Eurospec by Carlisle Brass

Finish:

• Polished Nickel

Suitable for:

• 2 Hinge Max load: 50kg
• 3 Hinge Max load: 70kg
• 4 Hinge Max load: 80kg
• Rated FD60 for 60 minute Fire Door
• Domestic Use

Dimensions

• Length: 130mm
• Width: 30mm
• Depth: 21mm
• Min Door Thickness: 35mm
