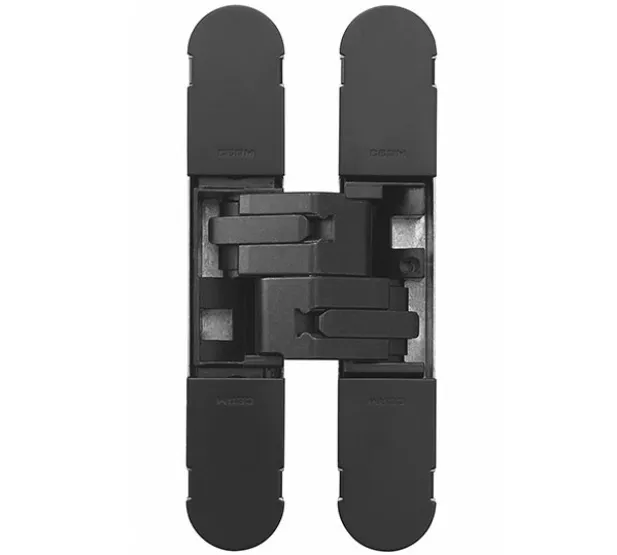

Ceam Matt Black Varnish 160mm 3D Concealed Hinge 1131 | CI001131VNO00

Ceam Matt Black varnish 160mm 3D Concealed Hinge 1131 | CI001131BRS00

• Concealed heavy duty hinge
• Suitable for unrebated, flush faced quality timber doors
• Removable cover plates to concealed adjustment screws

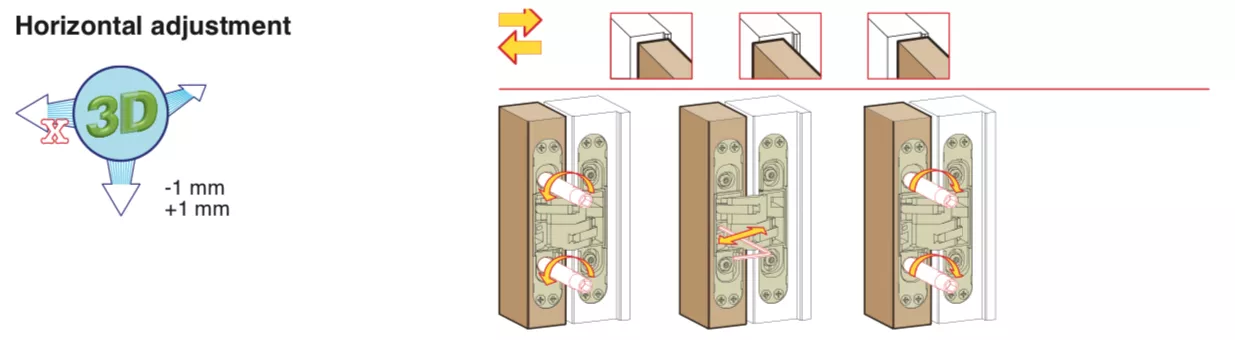

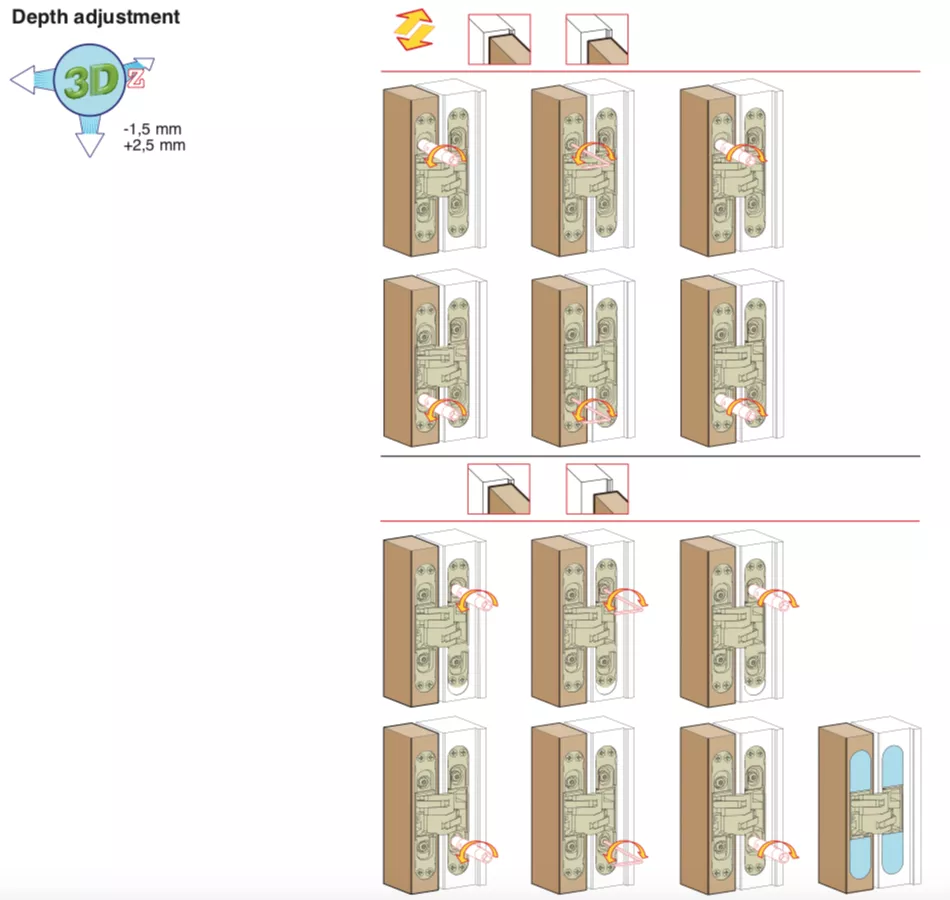

• 3D Adjustable for fine tuning whilst fitting
• Suitable for FD60 fire doors when used with intumescent kit
• 10 year mechanical guarantee
• Ceam range from Eurospec by Carlisle Brass

Finish:

• Matt Black Varnish

Suitable for:

• 2 Hinge Max load: 80kg
• 3 Hinge Max load: 120kg
• 4 Hinge Max load: 140kg
• Rated FD60 for 60 minute Fire Door
• Domestic Use

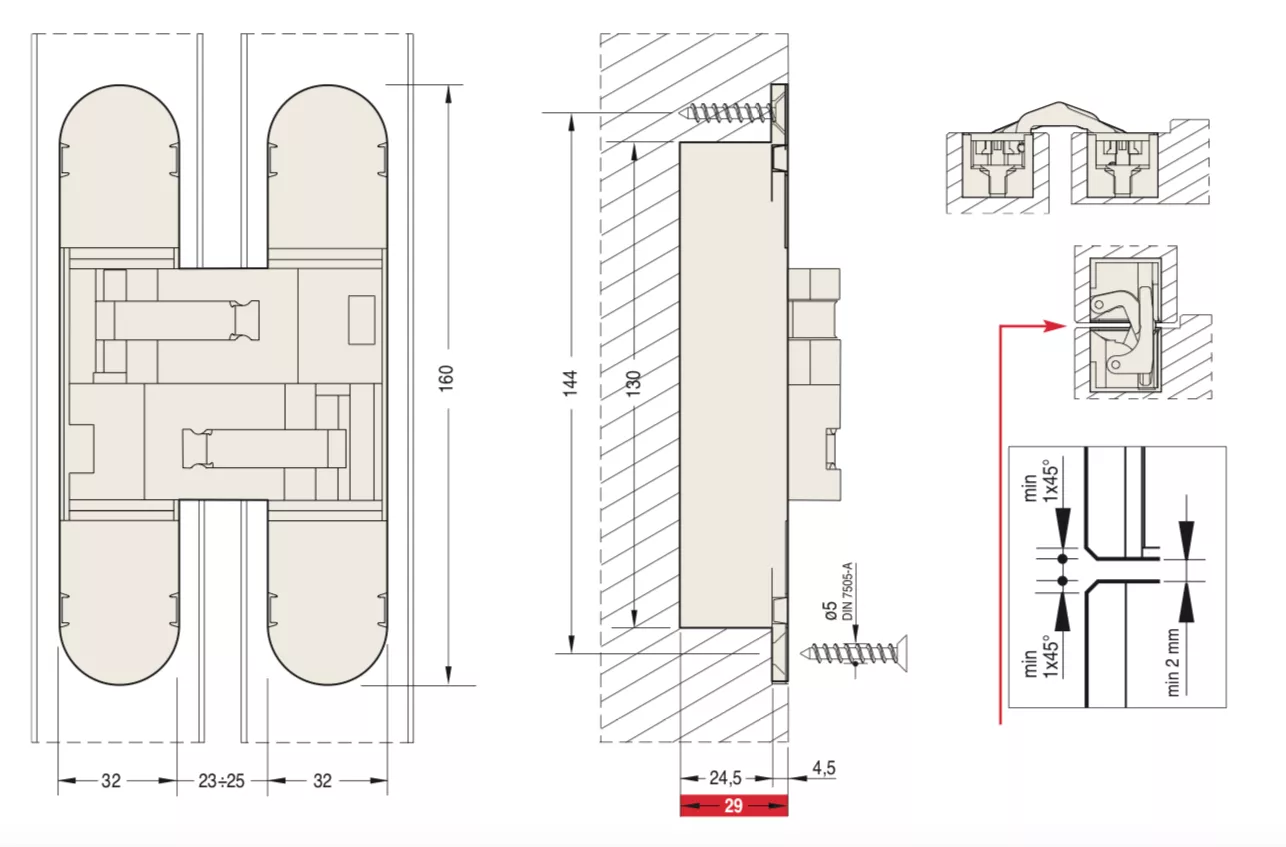

Dimensions

• Length: 160mm
• Width: 32mm
• Depth: 29mm
• Min Door Thickness: 38mm
