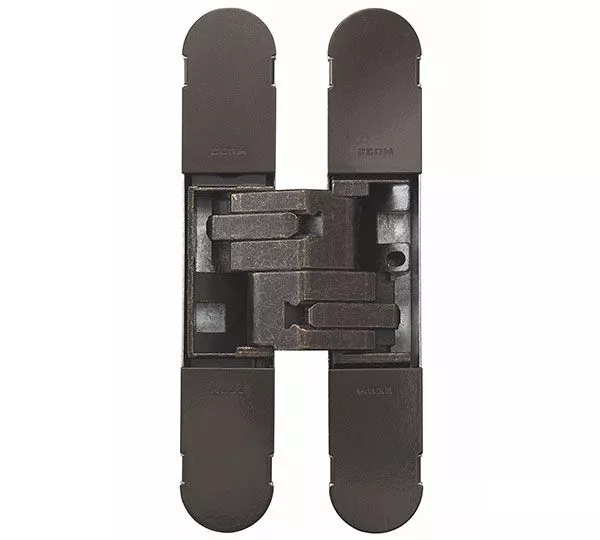

Ceam Bronze 134mm 3D Concealed Hinge 1130 | CI001130BRO00

Ceam Bronze 3D Concealed Hinge 1130

• Concealed medium duty hinge
• Suitable for unrebated, flush faced quality timber doors
• Removable cover plates to concealed adjustment screws

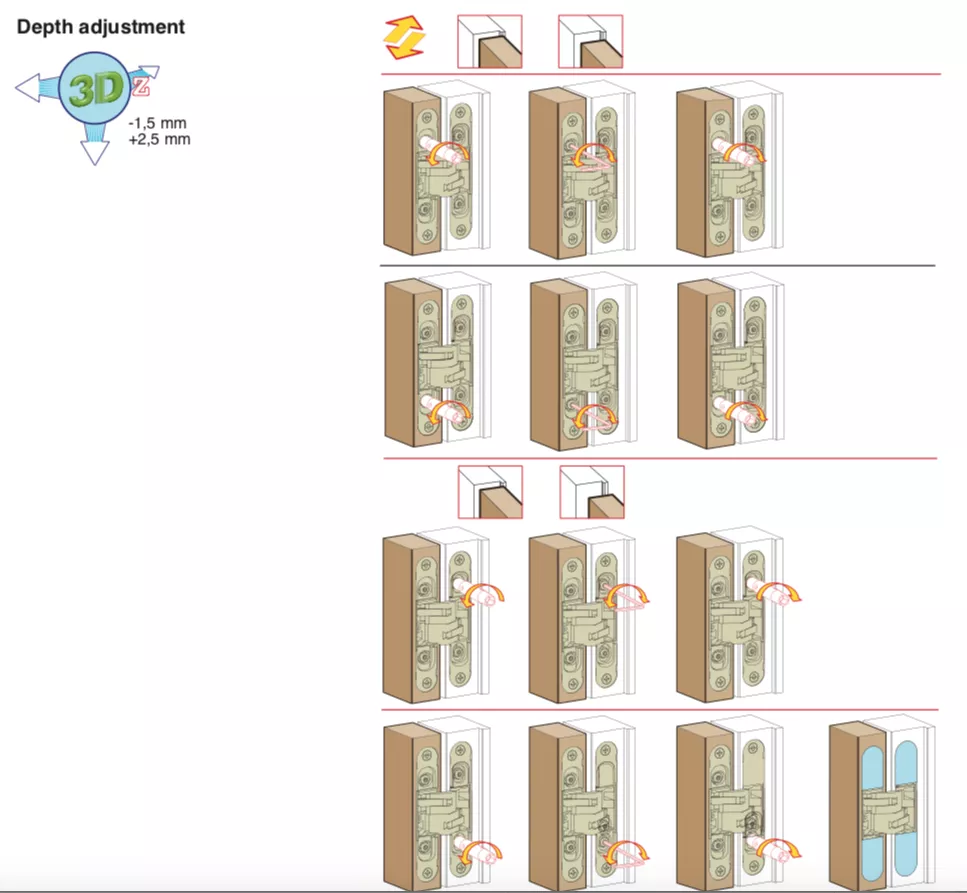

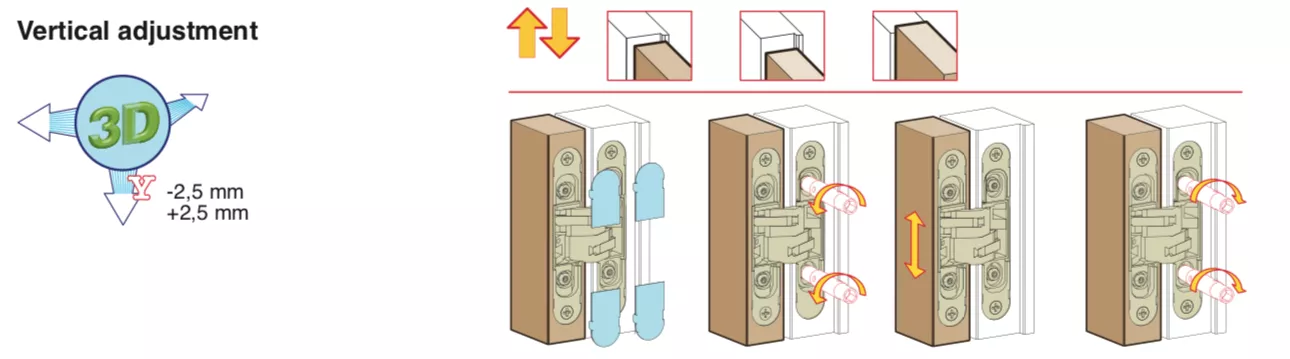

• 3D Adjustable for fine tuning whilst fitting
• Suitable for FD30 fire doors when used with intumescent kit
• 10 year mechanical guarantee
• Ceam range from Eurospec by Carlisle Brass

Finish:

• Bronze Plated

Suitable for:

• 2 Hinge Max load: 40kg
• 3 Hinge Max load: 60kg
• 4 Hinge Max load: 70kg
• Rated FD30 for 30 minute Fire Door
• Domestic Use

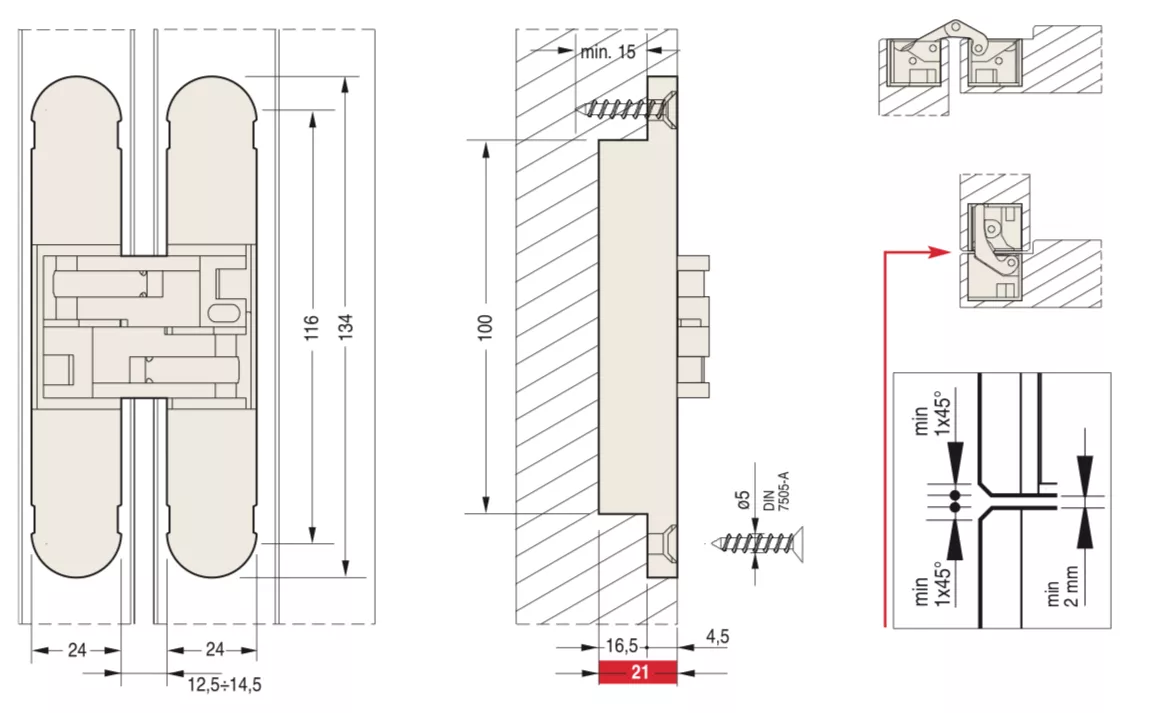

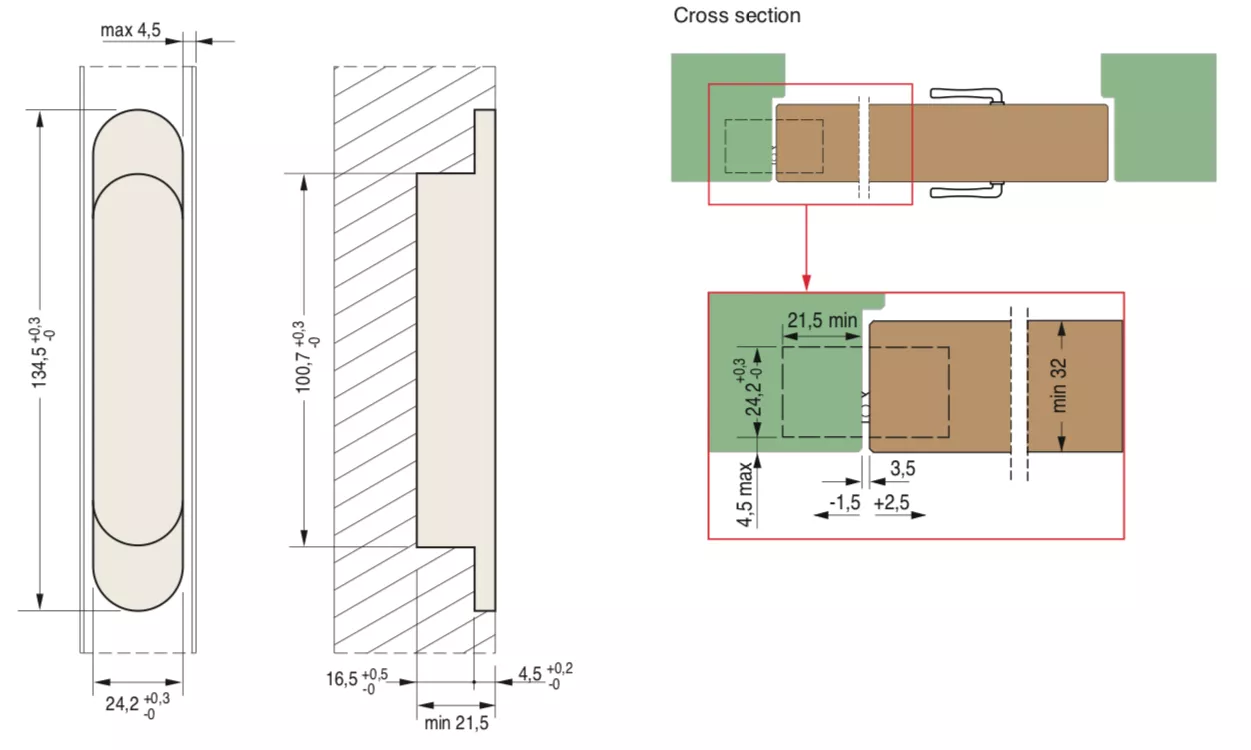

Dimensions

• Length: 134mm
• Width: 24mm
• Depth: 21mm
• Min Door Thickness: 30mm
