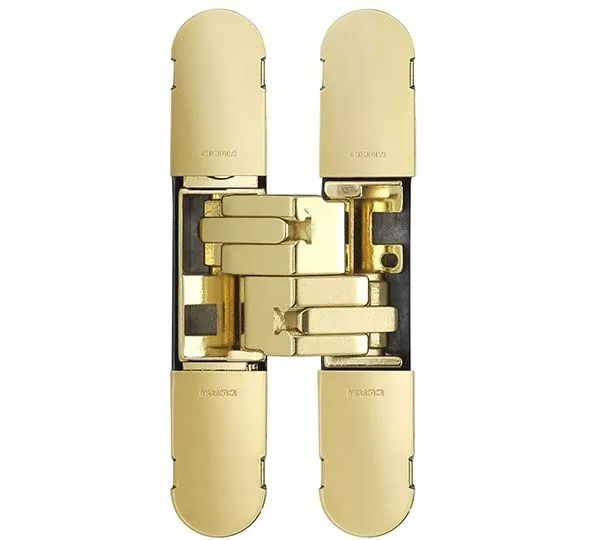

Ceam Brass 160mm 3D Concealed Hinge 1131 | CI001131OTT00

Ceam Brass 3D Concealed Hinge 1131

• Concealed heavy duty hinge
• Suitable for unrebated, flush faced quality timber doors
• Removable cover plates to concealed adjustment screws
• 3D Adjustable for fine tuning whilst fitting
• Suitable for FD60 fire doors when used with intumescent kit
• 10 year mechanical guarantee
• Ceam range from Eurospec by Carlisle Brass

Finish:

• Brass Plated

Suitable for:

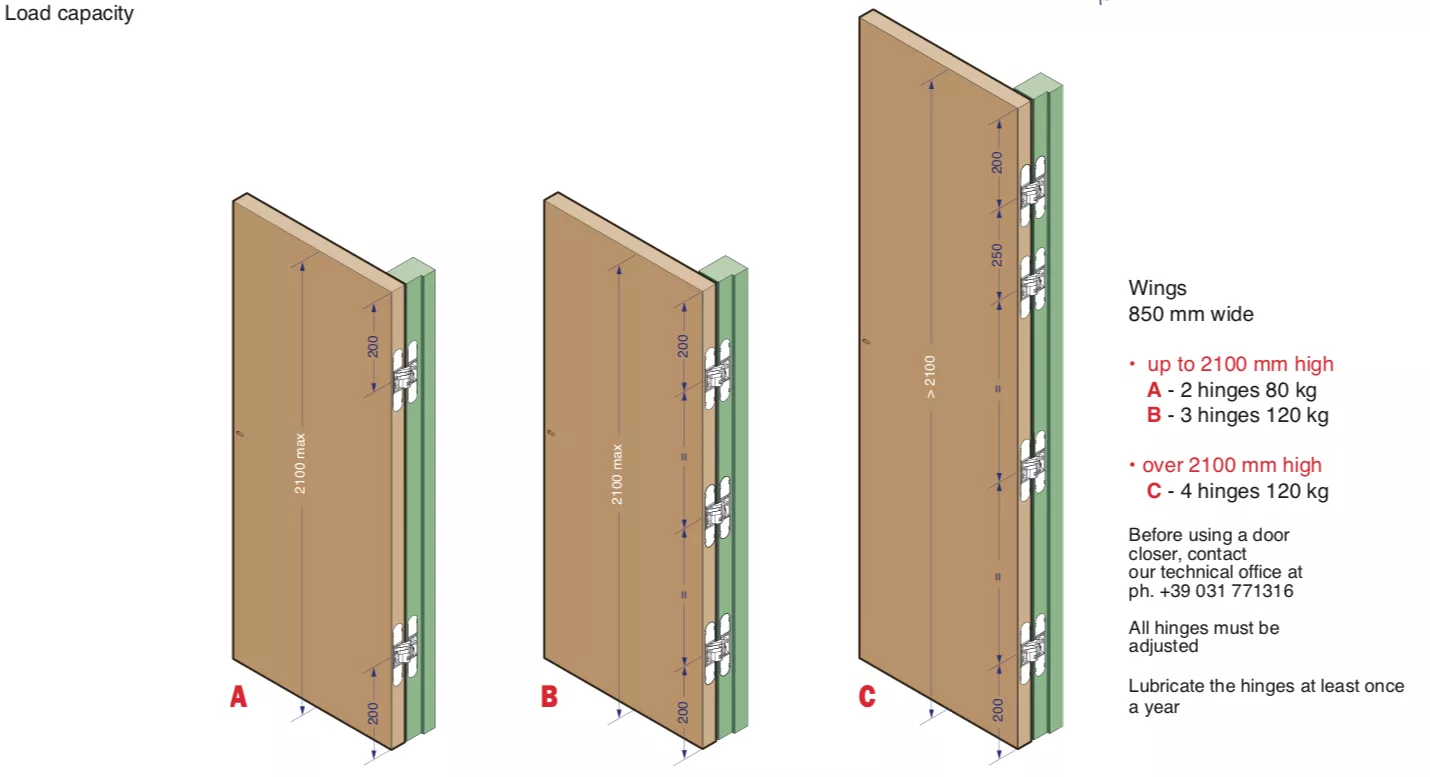

• 2 Hinge Max load: 80kg
• 3 Hinge Max load: 120kg
• 4 Hinge Max load: 140kg
• Rated FD60 for 60 minute Fire Door
• Domestic Use

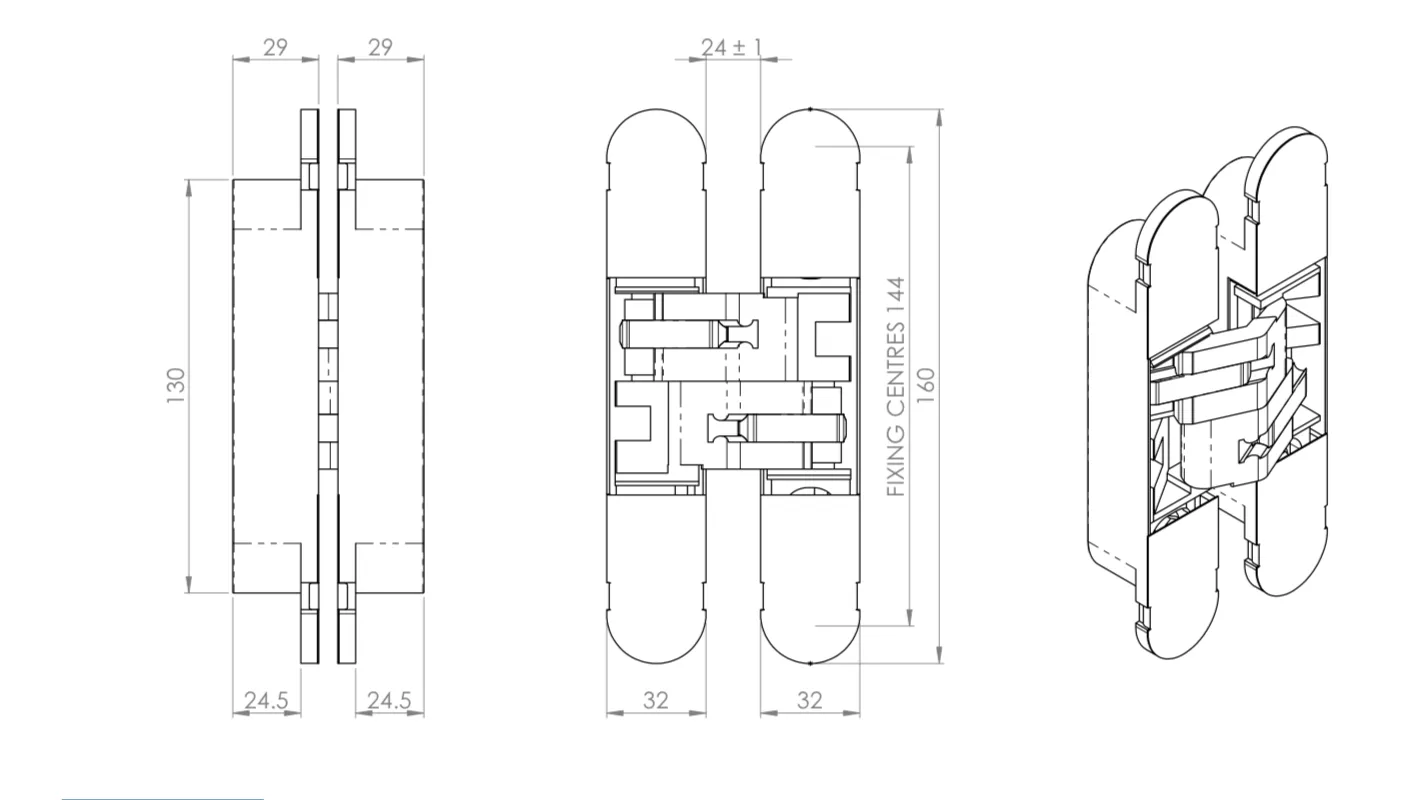

Dimensions

• Length: 160mm
• Width: 32mm
• Depth: 29mm
• Min Door Thickness: 38mm
