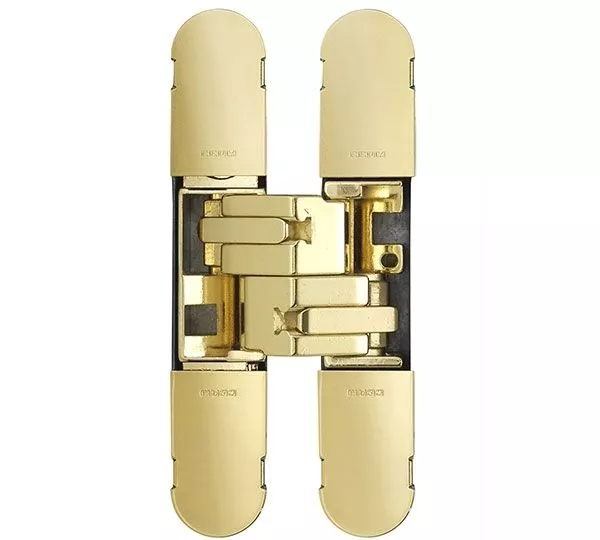

Ceam Brass 100mm 3D Concealed Hinge 1129
- Concealed medium duty hinge
- Suitable for unrebated, flush faced quality timber doors
- Removable cover plates to concealed adjustment screws

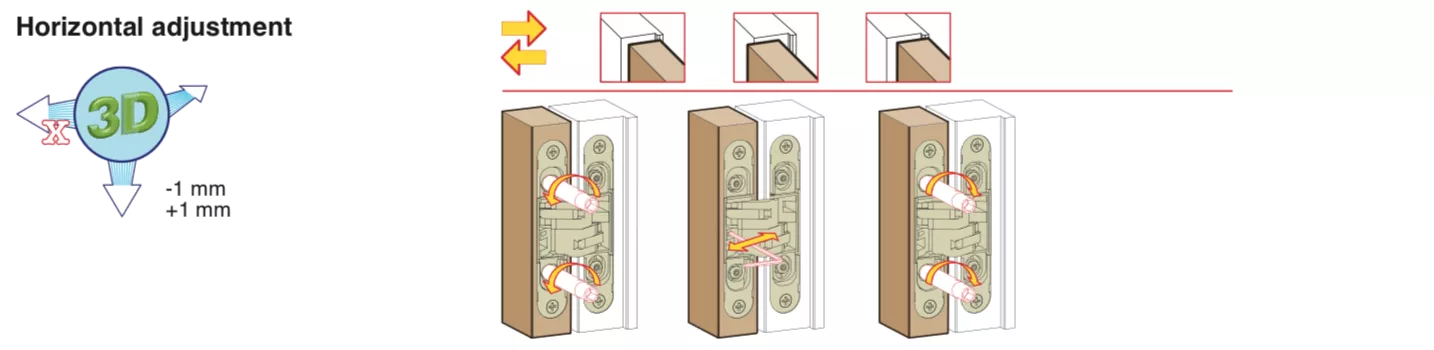

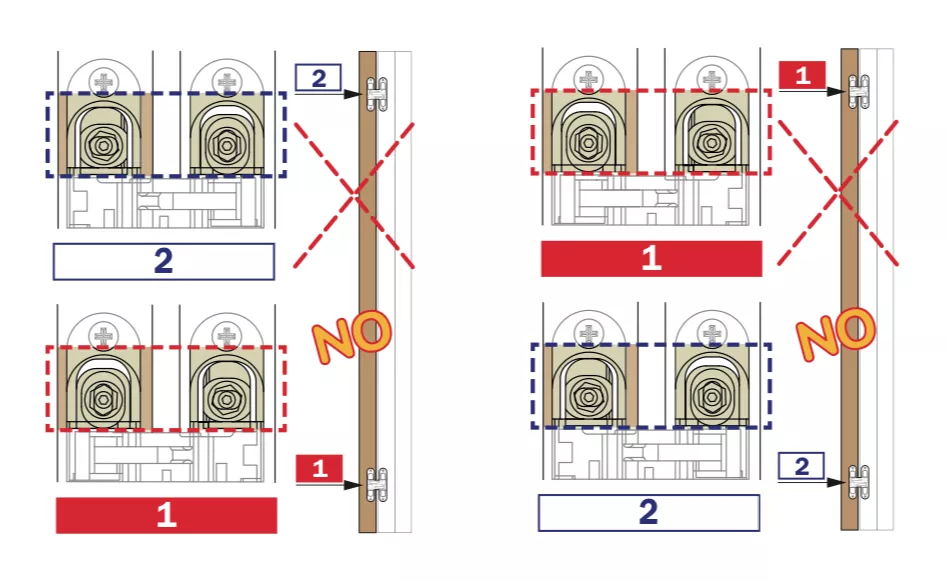

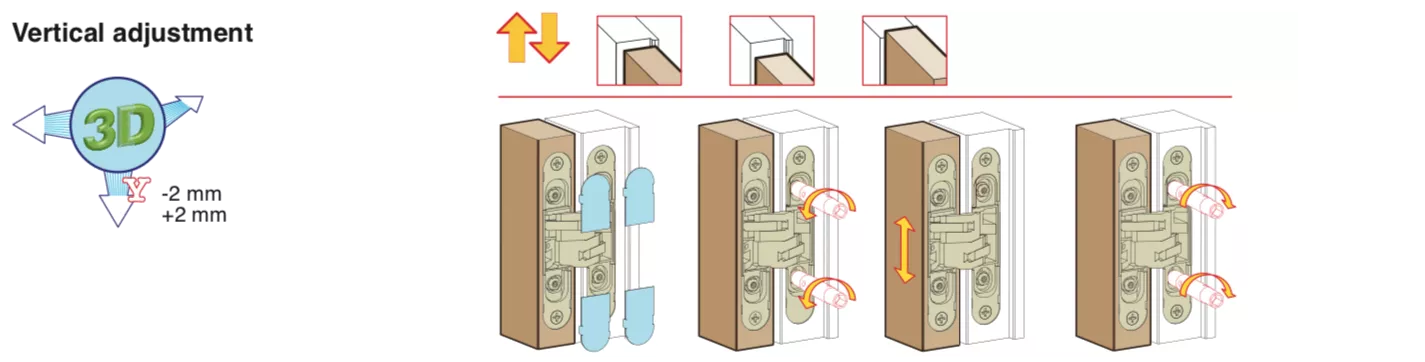

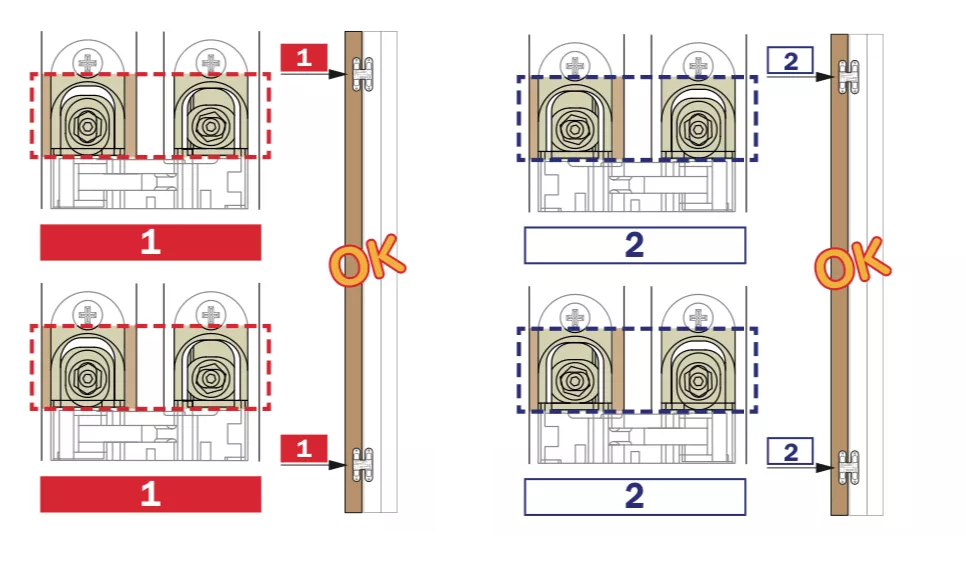

- 3D Adjustable for fine tuning whilst fiting
- 10 year mechanical guarantee
- Ceam range from Eurospec by Carlisle Brass
Finish:
- Brass Plated
Suitable for:

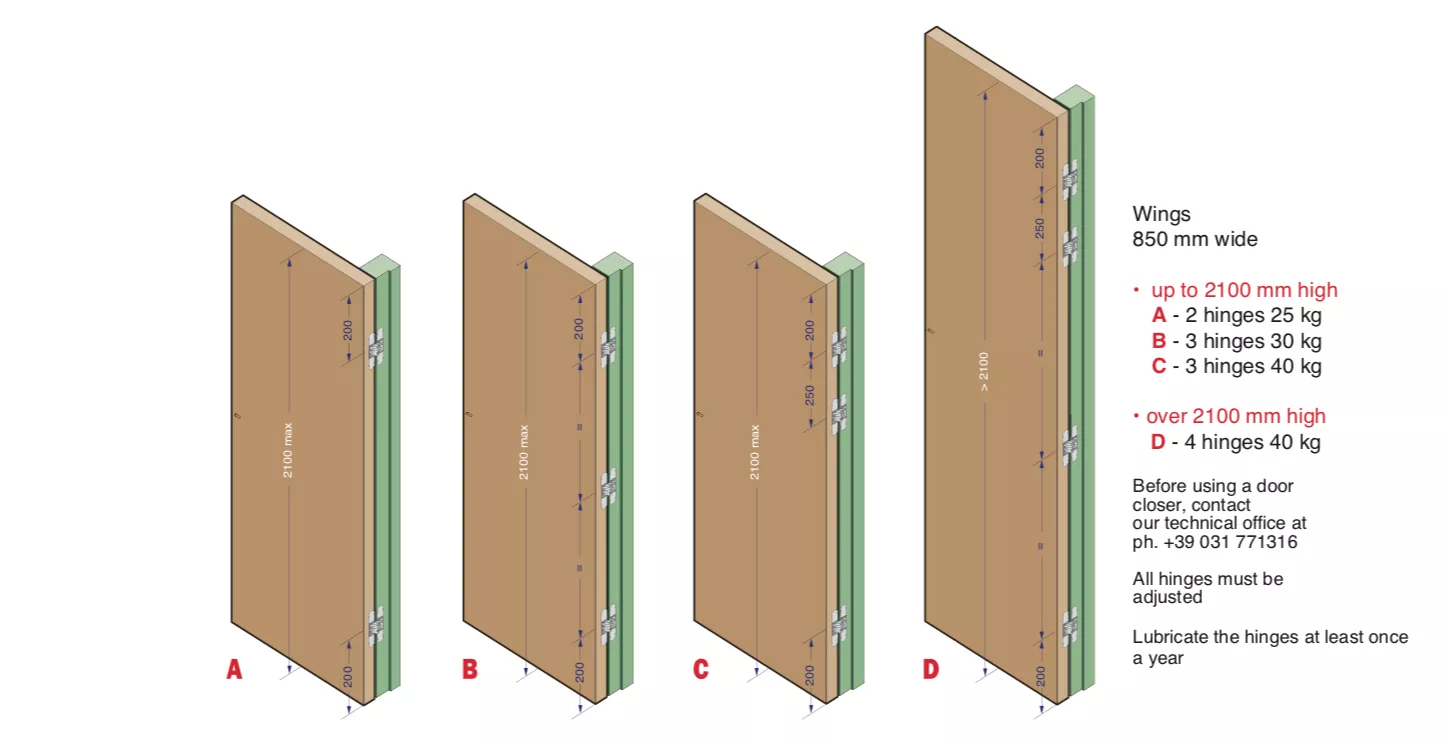

- 2 Hinge Max load: 25kg
- 3 Hinge Max load: 30kg
- 4 Hinge Max load: 44kg
Dimensions
- Length: 100mm
- Width: 22mm
- Depth: 18mm

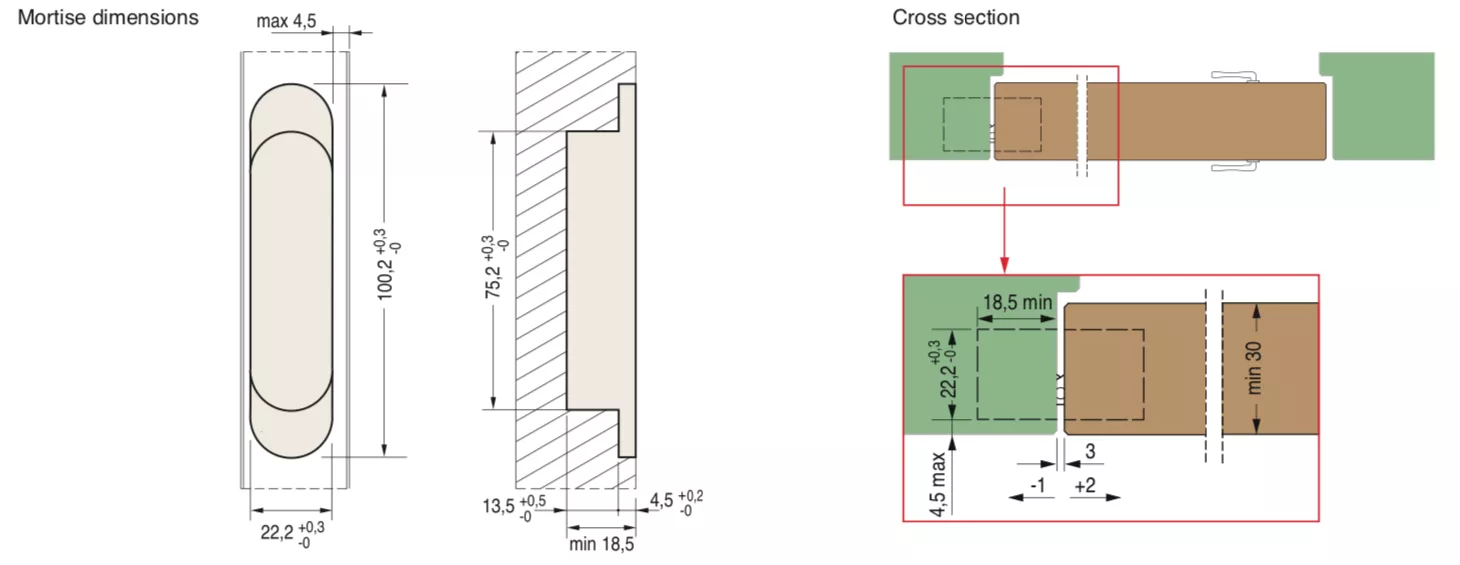

- Min Door Thickness: 28mm
