Ceam Antique Satin Bronze 134mm 3D Concealed Hinge 1130 | CI001130BRS00
- Concealed medium duty hinge
- Suitable for unrebated, flush faced quality timber doors
- Removable cover plates to concealed adjustment screws

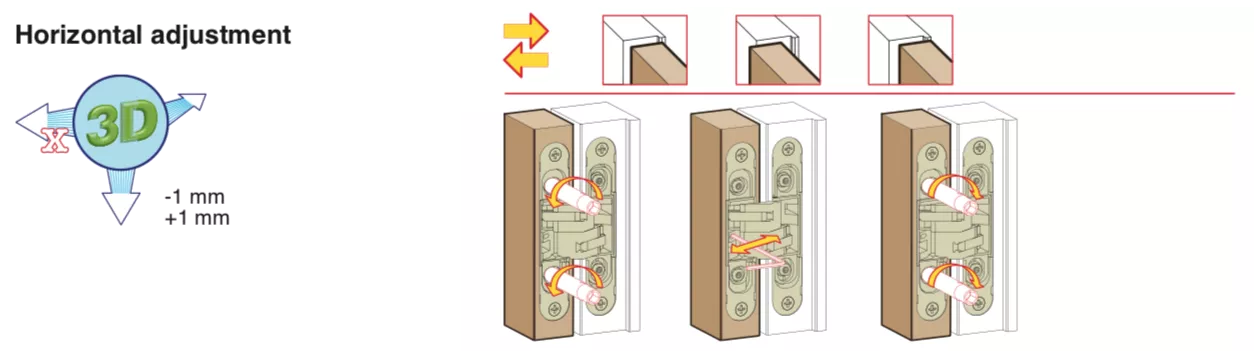

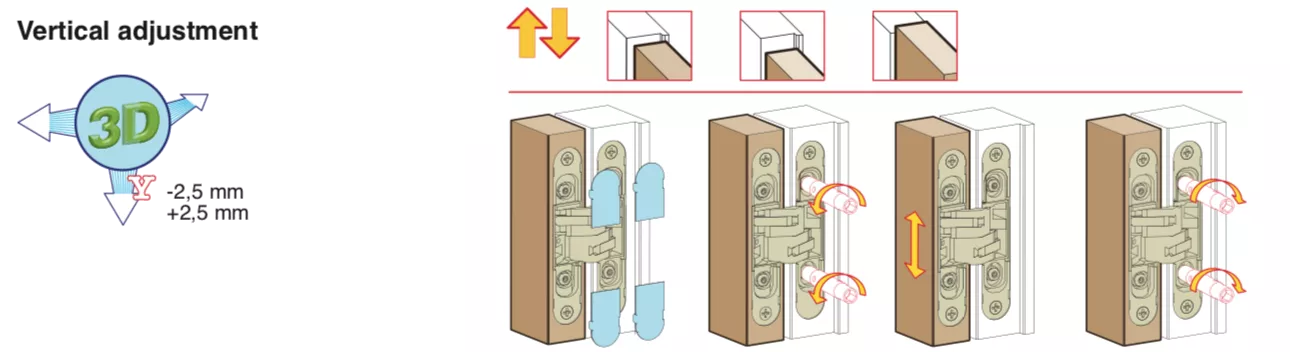

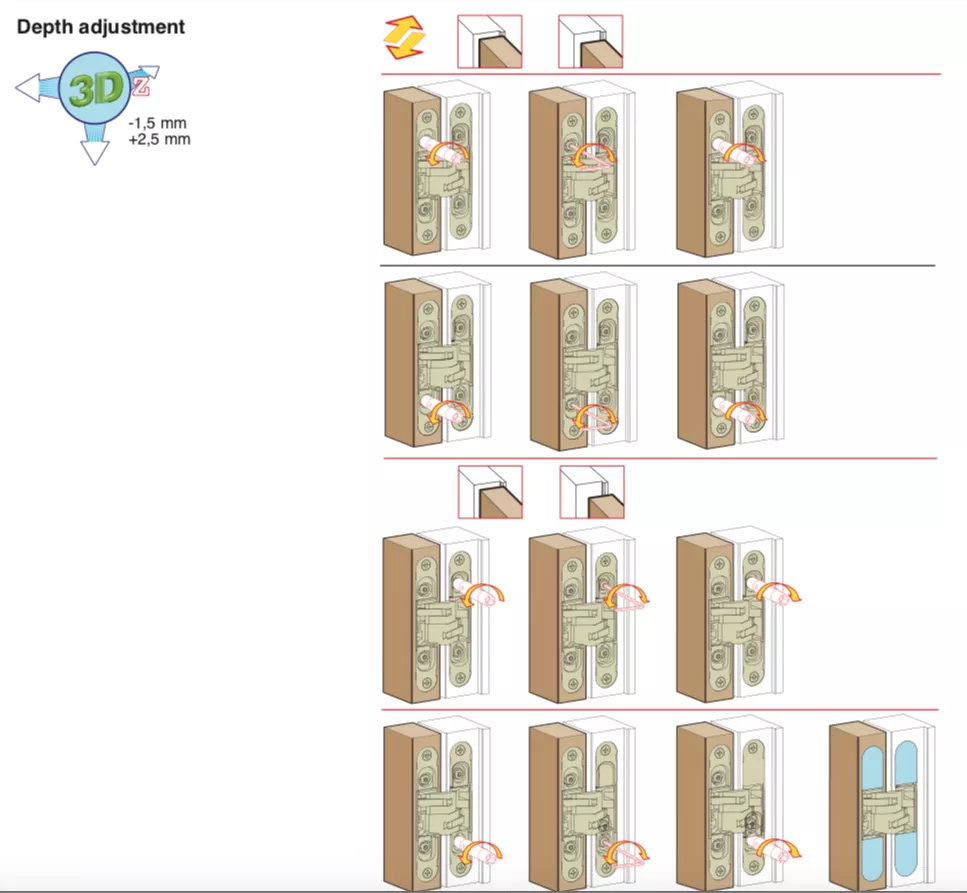

- 3D Adjustable for fine tuning whilst fitting
- Suitable for FD30 fire doors when used with intumescent kit
- 10 year mechanical guarantee
- Ceam range from Eurospec by Carlisle Brass
Finish:
- Antique Satin Bronze Plated
Suitable for:

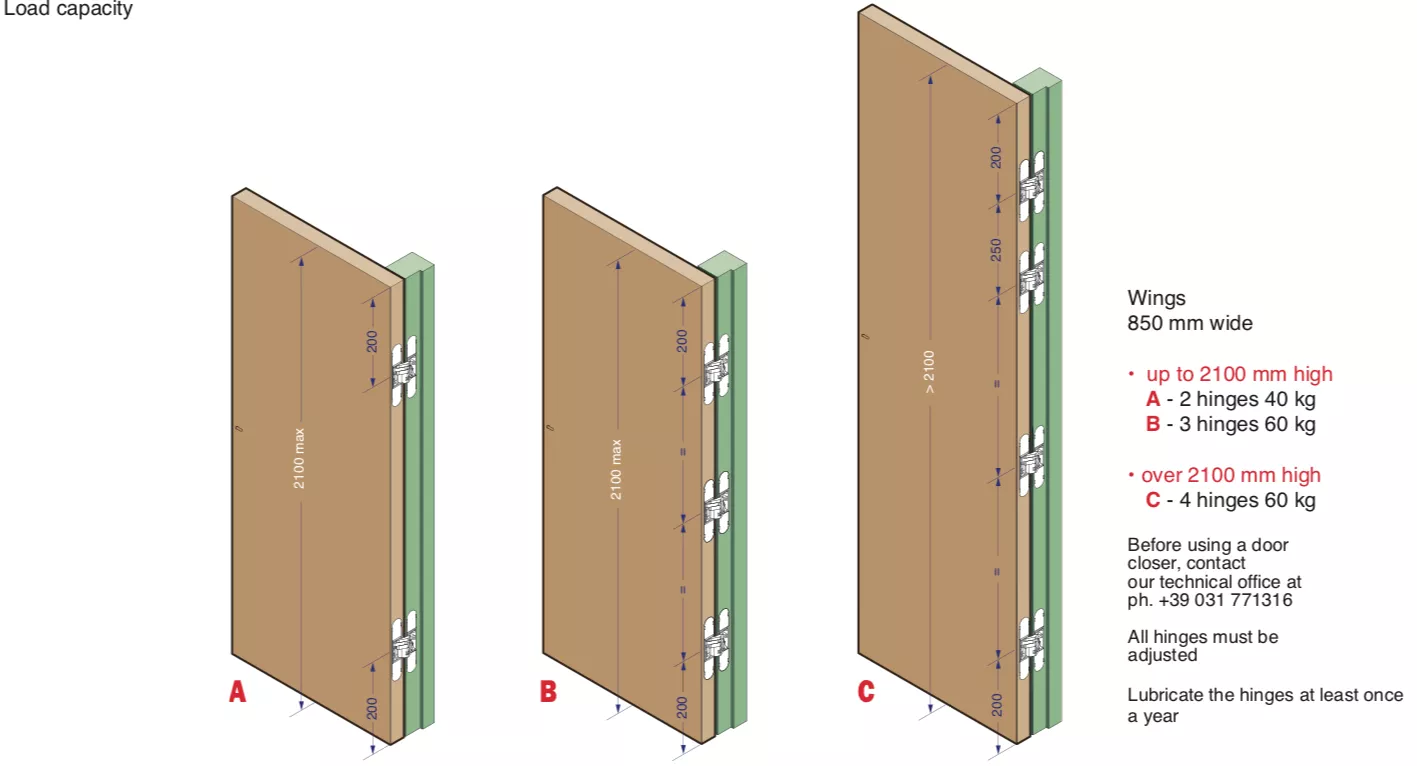

- 2 Hinge Max load: 40kg
- 3 Hinge Max load: 60kg
- 4 Hinge Max load: 70kg
- Rated FD30 for 30 minute Fire Door
- Domestic Use

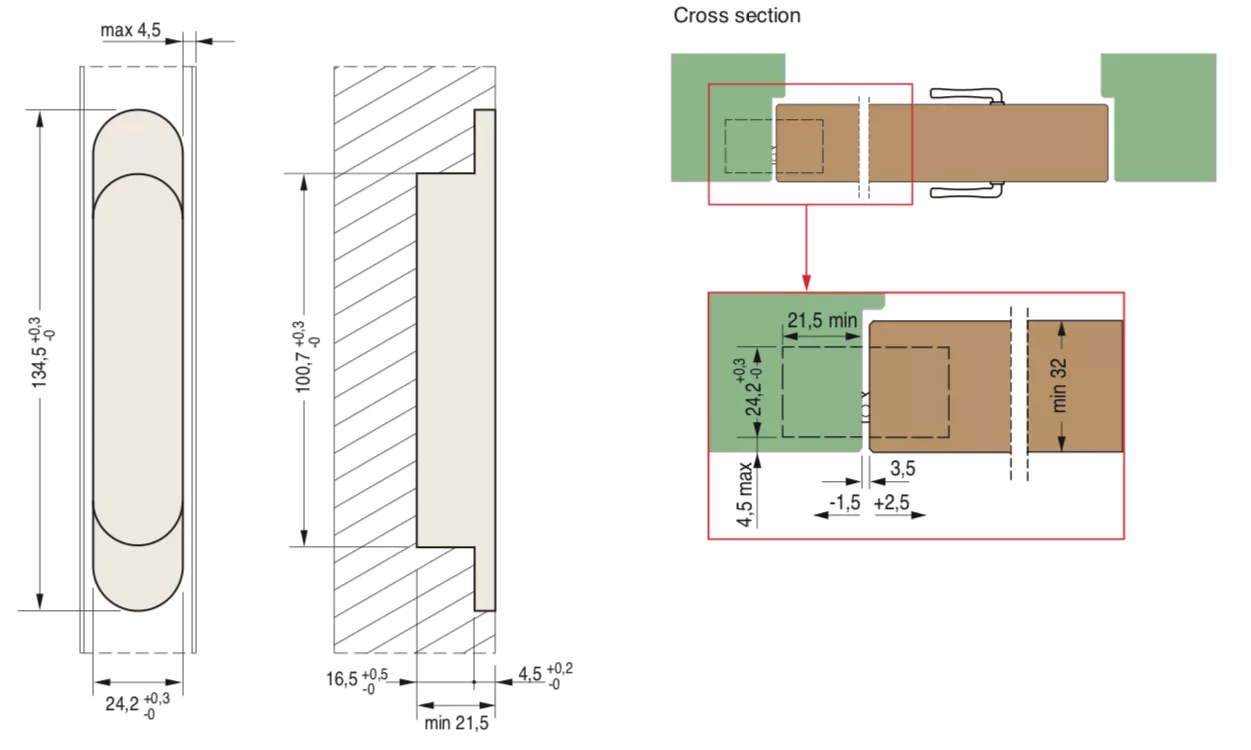

Dimensions
- Length: 134mm
- Width: 24mm
- Depth: 21mm
- Min Door Thickness: 30mm
