151mm Satin Brass 3 Lever Horizontal Mortice Lock | G3012SB

151mm Satin Brass 3 Lever Horizontal Mortice Lock | G3012SB

• 3 Lever horizontal mortice lock for use on internal wooden hinged doors providing a standard level of security.
• CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209.
• Latchbolt operated by knob from either side Deadbolt operated by key from either side.
• Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture.
• Supplied with 2 keys, striker plate and fixing screws.
• Striker Plate: Type B.
• Latchbolt: Brass, reversible. Projection 12mm.
• Deadbolt: Brass. Throw 16mm.
• Follower: Brass, to suit 8mm square spindle. Two-way action.
• Differs: 100 numbered 301-400.
• Rebate Units to Suit: G3057-13mm G3058-19mm G3059-25mm.
• Box: DUSTBOX1 – Sold Separately.
• Manufactured by Imperial Locks

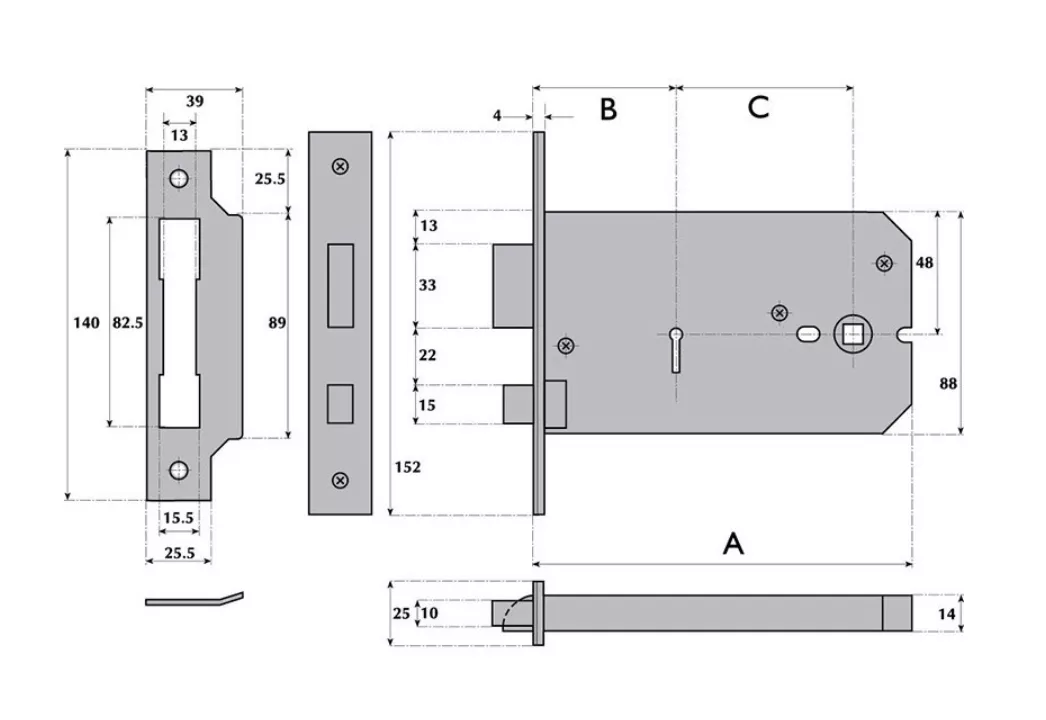

Dimensions:

• Lock Case: 151mm
• Backset: 57mm
• Centres: 70mm
