151mm Polished Brass Euro-Profile Cylinder Horizontal Mortice Lock | G7012PB

151mm Polished Brass Euro-Profile Cylinder Horizontal Mortice Lock | G7012PB

• Euro profile cylinder horizontal mortice lock for use on external wooden hinged doors providing a high level of security.
• CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209.
• Latchbolt operated by knob from either side Deadbolt operated by key from either side using a double cylinder or by key outside and thumb turn inside using a single cylinder with turn.
• Pierced to accept 20mm centre bolt through fixing escutcheons and pierced to accept 38mm centre horizontally opposed bolt through fixing furniture.
• Supplied with striker plate and fixing screws.
• Striker Plate: Type B.
• Latchbolt: Brass, reversible. Projection 12mm.
• Deadbolt: Brass, with two hardened steel rollers. Throw 14mm.
• Follower: Brass, to suit 8mm square spindle. Two-way action.
• Cylinder: Not supplied. May be used with the following cylinders: a) Key either side such as Guardian G9001 b) Turn inside and key outside such as Guardian G9002.
• Rebate Units to Suit: G3057-13mm G3058-19mm G3059-25mm.
• Box: DUSTBOX1 – Sold Separately.
• Manufactured by Imperial Locks

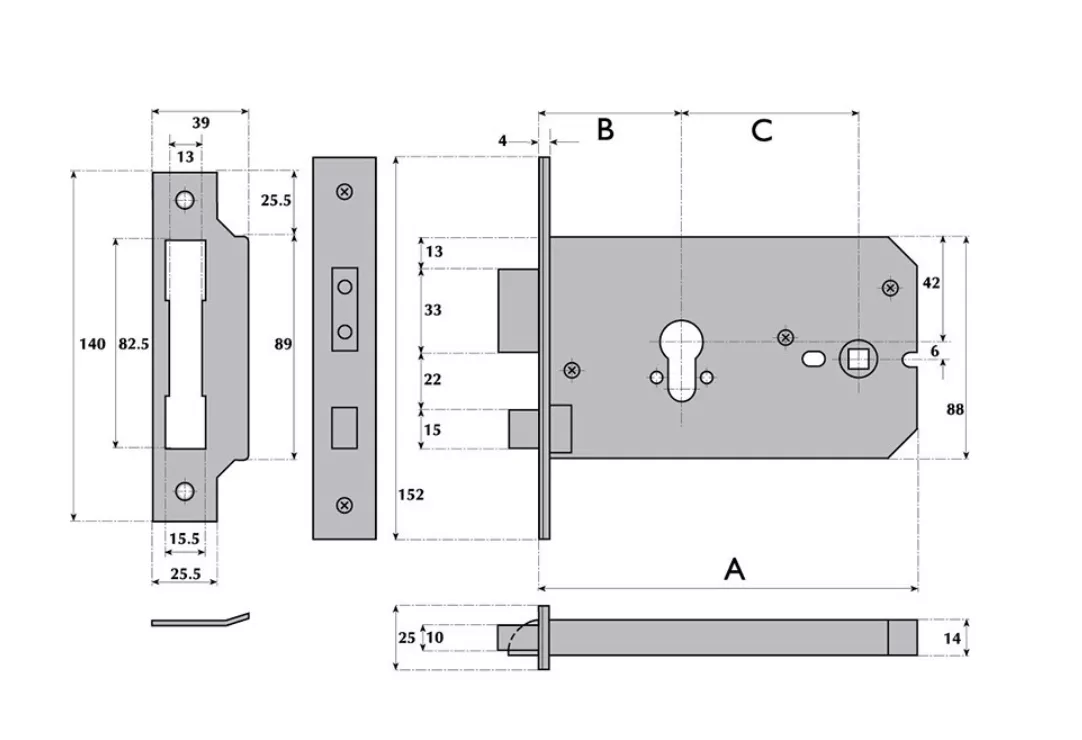

Dimensions:

• Lock Case: 151mm
• (B Dimension) Backset: 57mm
• (C Dimension) Centres: 70mm
